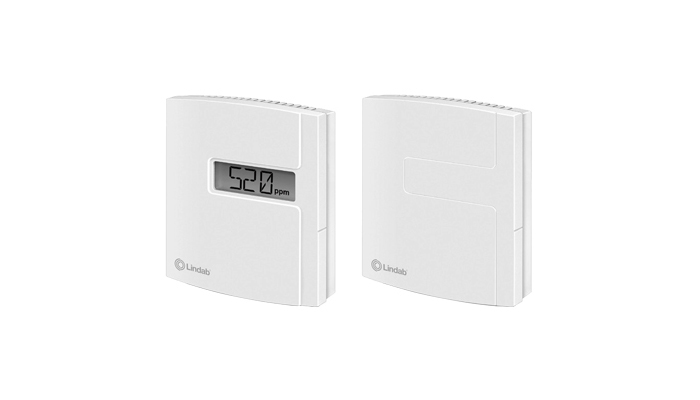

CTRTA-D-LBCapteur d'ambiance
A range of room transmitters for measuring carbon dioxide concentration in indoor environments. The transmitter has a built-in CO2 sensor with working range 0...2000 ppm and output signal 0...10 V, as well as a built-in PT1000 temperature sensor with separate terminals.
- Output signal CO2, 0...10 V DC referring to 0...2000 ppm
- Temperature sensor, 0...10 V DC referring to 0...50°C and
- PT1000 class DIN B
- CO2 concentration, 0...2000 ppm
- Temperature, 0...50°C
- Good long-term stability
- RCBC algorithm
Transmitters with automatic calibration combining measurementof CO2 level and temperature in the same casing. The sensors are mounted in the cover-part of the casing. The cover is easy to detach from the back by means of snap-in grips and detachable terminals. This makes mounting easier. Furthermore, no cables have to be disconnected, simplifying service and replacement.
The transmitters are intended for wall mounting in HVAC systems.
*Les articles non disponibles en stock peuvent être commandés ou fabriqués sur demande du client. Pour plus d'informations, veuillez consulter votre personne de contact.
Propriété | Valeur |
---|
