DTPURegistre de fermeture pneumatique

Shut-off damper with pneumatic actuator

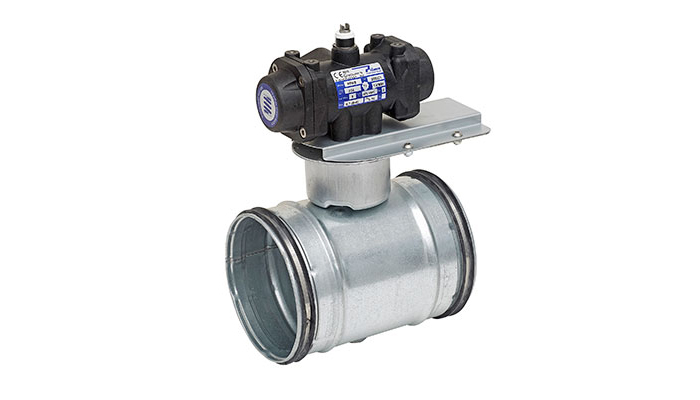

Consists of a DTU damper with a pneumatic actuator installed. The actuator consists of a glass-reinforced polyamide housing with an internal rolling diaphragm to which the spindle is fixed.

When air pressure rises, the actuator spindle is forced out and operates the blade via a lever. When air pressure falls, the actuator spindle retracts under the tension of the return spring. The damper blade is closed when delivered, and the actuator fully retracted.

There is a separate assembly, measuring, balancing and maintenance instruction for this product.

Ø 80–200 fullfills pressure class C in closed position.

_{*Les articles non disponibles en stock peuvent être commandés ou fabriqués sur demande du client. Pour plus d'informations, veuillez consulter votre personne de contact.}
